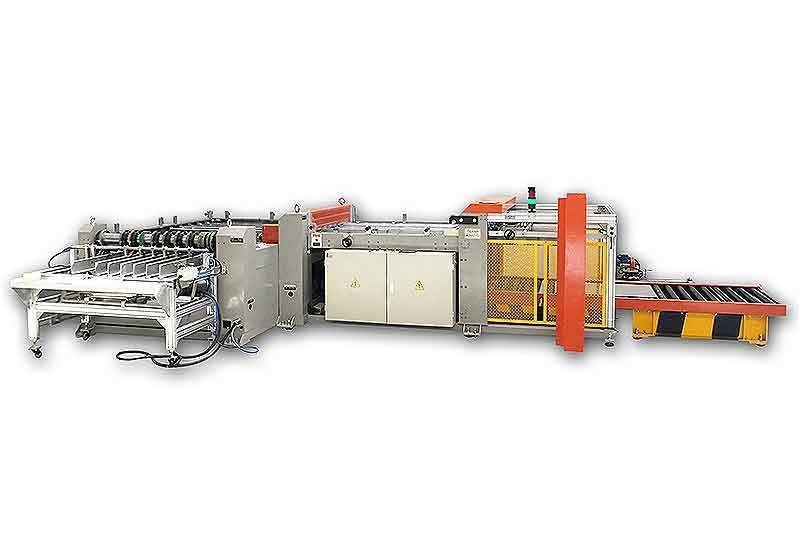

AUTOMATIC TINPLATE SLITTER MACHINE JG-ZBJ-FS FOR CHEMICLA TIN CAN MAKING
Description
In a typical can production line, the slitter is the first important machine. It cuts printed and coated metal sheets into body blanks of the right size. Adding a blank stack transfer unit makes the slitter more efficient. Our slitters are custom-made, very strong, and easy to adjust for different sizes, ensuring high precision. They are ideal for producing tin can bodies because they offer great versatility, precision, reliability, and fast production speed.
The duplex slitter, also known as a tinplate sheet slitter, is a key machine in a three-piece can production line. It is the first station in the can-making process. This machine cuts tinplate or stainless steel sheets into can body blanks or strips for can ends. A high-quality duplex slitter is essential for an efficient metal packaging factory. The basic requirements for a duplex slitter are versatility, precision, and robustness.
The slitter includes several parts: a feeder, shear, electrical control box, vacuum pump, loader, and sharpener. The multifunctional slitter can automatically feed, cut vertically and horizontally, detect duplex cuts, and count using electromagnetism.
|
First cut(min width) |
150mm |
Second cut (min width) |
60mm |
|
Speed(pcs/min) |
32 |
Thickness of sheet |
0.12-0.5mm |
|
Power |
22kw |
Voltage |
220v/380v/440v |
|
Weight |
21000kg |
Dimension(L8W8H) |
2520X1840X3980mm |
|
Straight Cutting Machine (JG-JBJ-ZS) |
Automatic Slitter Machine |
|
|
|
FAQ
1. What brand are the main bearings?
The main bearings are made by NSK from Japan, known for their reliability and durability.
2. Is the operation of the slitter machine difficult?
The slitter machine is easy to use. It comes with clear instructions to help you operate it.
What is the difference between a single slitting machine and a duplex slitter?
The single slitting machine is flexible and can cut different size. The duplex slitter is better for one type of product and has stronger connectins.
