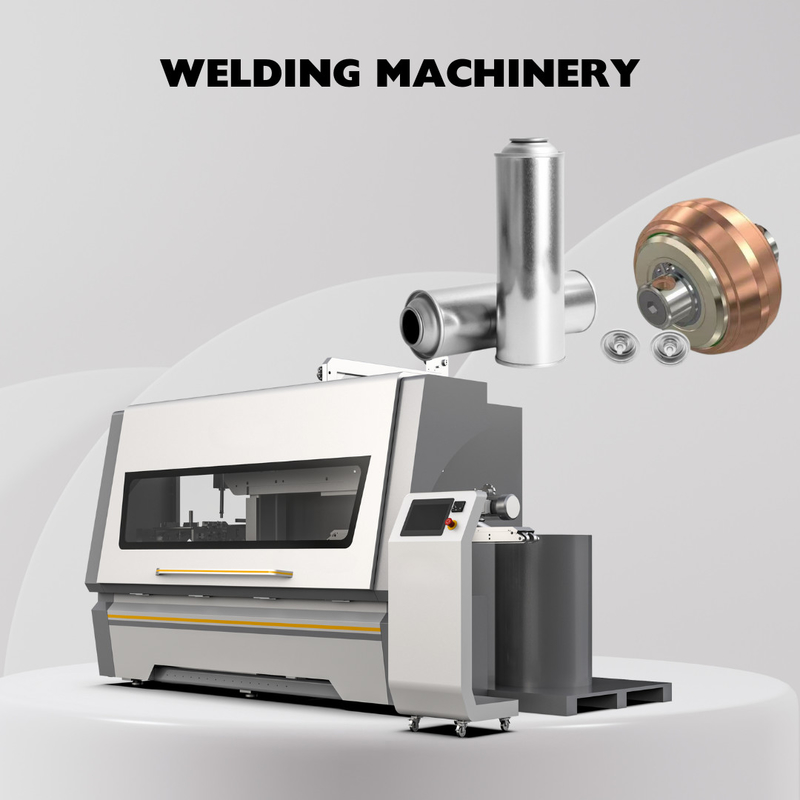

Automatic Can Body Welder Tinplate Aerosol 150-650 CPM
Description
This automatic can body welder gathers the functions of auto sucking, blank-feeding, tinplate-rolling and rounding, pushing, welding. It is operation system is furnished with the touch screen, operation human-computer interface, fault self-analysis and the display, all above realize fully automatic system such as main transmission all adopt VVVF device, which makes the system be more convenient and reliable in regulating and running. Thus this equipment is the ideal one in the metal can making industry.
Details
|
Model |
JG-HJ-150 |
JG-HJ-300 |
JG-HJ-500 |
JG-HJ-650 |
|
Output Capacity(cans/min) |
150cpm |
300cpm |
500cpm |
650cpm |
|
Welding Speed |
6-18 M/Min |
15-40 M/Min |
25-70 M/Min |
85 M/Min |
|
Lap |
0.4mm |
0.3-0.4mm |
0.3-0.4mm |
0.3-0.4mm |
|
Copper Wire Diameter |
Φ1.38-1.5mm |
Φ1.38-1.5mm |
Φ1.38-1.5mm |
Φ1.38mm |
|
Can Diameter |
Φ52-Φ180mm |
Φ52-Φ153mm |
Φ52-Φ180mm |
Φ52-Φ73mm |
|
Can Height |
H70-240mm |
H70-320mm |
H70-320mm |
H70-150mm |
|
Sheet Thickness |
0.16-0.30mm |
0.16-0.30mm |
0.16-0.30mm |
0.16-0.22mm |
|
Total Power |
30KW |
35KW |
50KW |
50KW |
|
Machine Weight |
1800KG |
5000KG |
5000KG |
5000KG |
|
Dimension(L*W*H) |
2000x1900x1400mm |
4650x 2300x 2500mm |
4650x2300x2500mm |
4650x2300x2500mm |
Advantage
|
Category |
Specifications |
|
Control System |
PLC + HMI (Human-Machine Interface) |
|
Technology |
Digital control for precision |
|
Power Supply |
Advanced digital inverter |
|
Control Options |
Touchscreen + Radio remote control |
|
Optional Equipment |
Parting machine (for cutting/separation) |
|
Benefits |
High efficiency, automation, energy savings |
Production Line
